ZERO ROUND

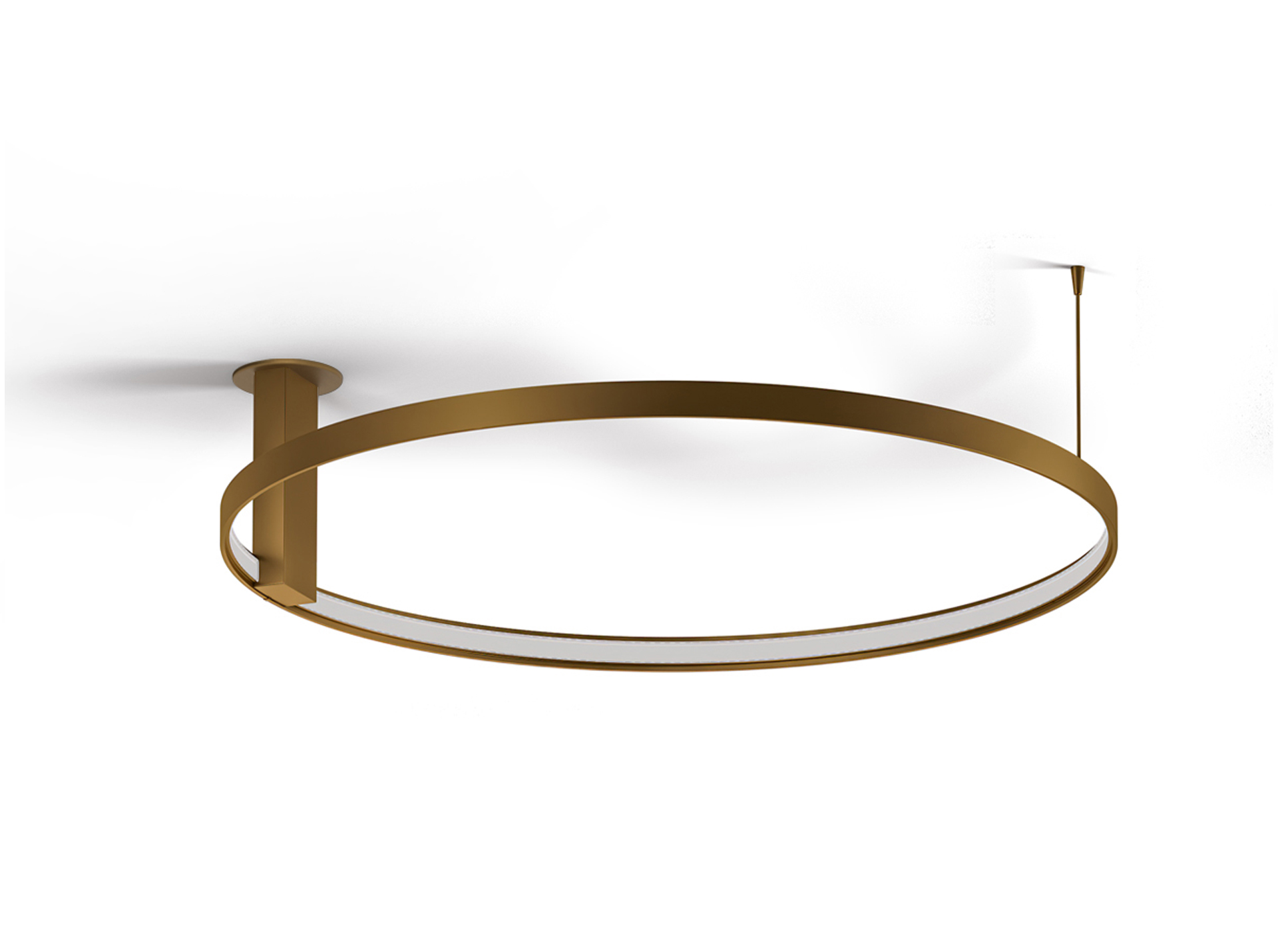

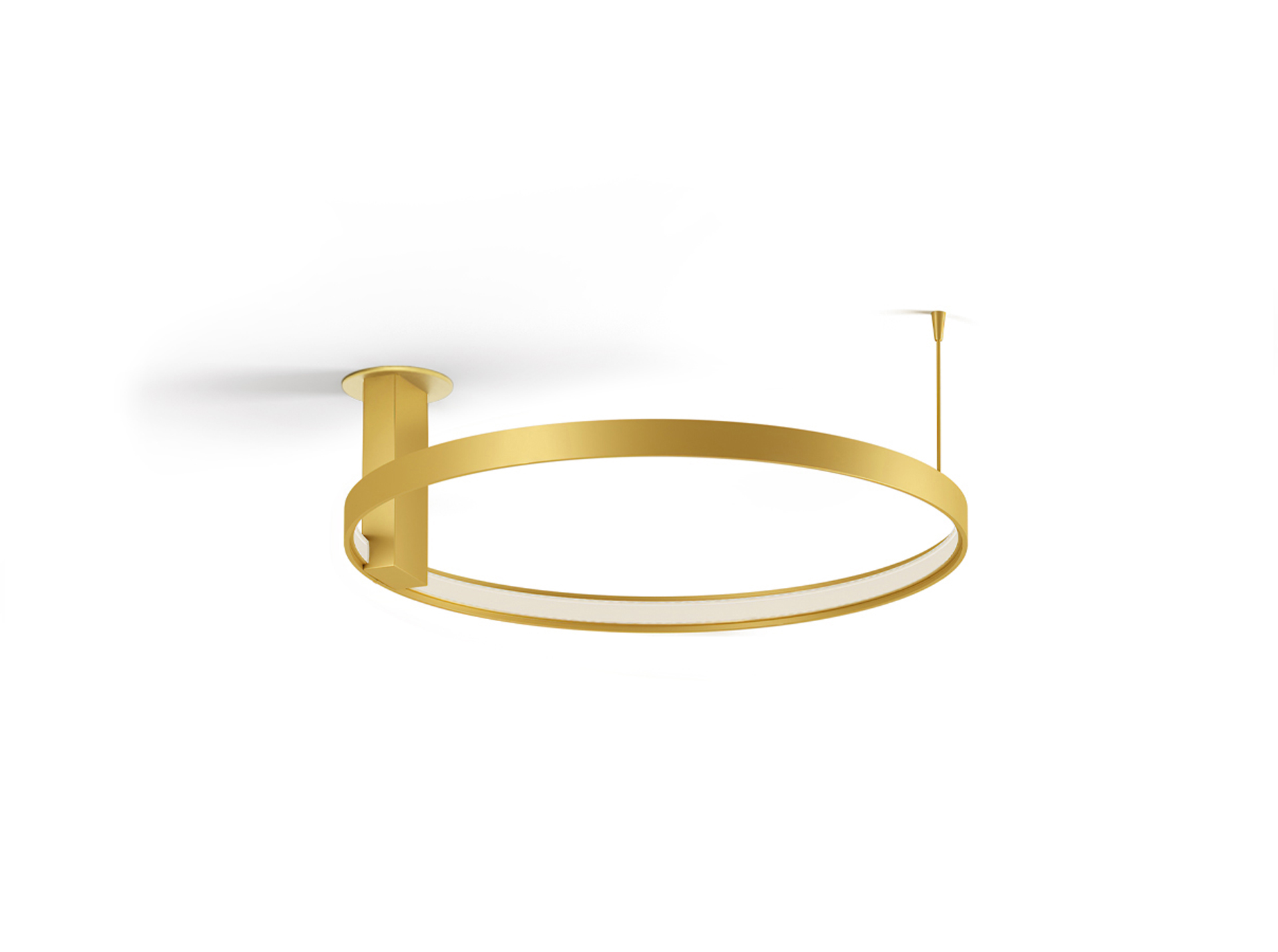

Horizontal suspension lamp, wall and ceiling lamp in extruded curved aluminum, with opal polycarbonate screen. Emission on the internal side provided by LED modules with technology DALI/Push DIM integrated into the canopy. Polyacrilic paint white, black, titanium, bronze and mat brass finishes are available. Canopies for single and multiple configurations with Zero Ellipse and and Zero Square are available, to be ordered separately. Ideal for offices, halls, living, and public spaces, also combinated with Zero Round Acoustic and Arena Acoustic.
Enzo Panzeri 2018
.jpg "ZERO ROUND 0")
.jpg "ZERO ROUND 1")
.jpg "ZERO ROUND 2")
.jpg "ZERO ROUND 3")
.jpg "ZERO ROUND 4")
.jpg "ZERO ROUND 5")
.jpg "ZERO ROUND 6")
.jpg "ZERO ROUND 7")
.jpg "ZERO ROUND 8")
Finishes
Filter:
Pendant with 2700K light
Diameter 20 in
LED 17W2700K Ra>90 2039lm24V DC 24V
Diameter 29 in
LED 24W2700K Ra>90 3059lm24V DC 24V
Diameter 39 in
LED 33W2700K Ra>90 4079lm24V DC 24V
Diameter 48 in
LED 41W2700K Ra>90 5099lm24V DC 24V
Diameter 57 in
LED 48,5W2700K Ra>90 6120lm24V DC 24V
Diameter 76 in
LED 65W2700K Ra>90 8158lm24V DC 24V
Pendant with 3000K light
Diameter 20 in
LED 17W3000K Ra>90 2039lm24V DC 24V
Diameter 29 in
LED 24W3000K Ra>90 3059lm24V DC 24V
Diameter 39 in
LED 33W3000K Ra>90 4079lm24V DC 24V
Diameter 48 in
LED 41W3000K Ra>90 5099lm24V DC 24V
Diameter 57 in
LED 48,5W3000K Ra>90 6120lm24V DC 24V
Diameter 76 in
LED 65W3000K Ra>90 8158lm24V DC 24V
Suspension with 3500K light
Diameter 20 in
LED 17W3500K Ra>90 2039lm24V DC 24V
Diameter 29 in
LED 24W3500K Ra>90 3059lm24V DC 24V
Diameter 39 in
LED 33W3500K Ra>90 4079lm24V DC 24V
Diameter 48 in
LED 41W3500K Ra>90 5099lm24V DC 24V
Diameter 57 in
LED 48,5W3500K Ra>90 6120lm24V DC 24V
Diameter 76 in
LED 65W3500K Ra>90 8158lm24V DC 24V
Ceiling/wall with 2700K light
Diameter 20 in
LED 20W2700K Ra>90 2039lm120-277V AC dimmable (0-10V)
Diameter 29 in
LED 29W2700K Ra>90 3059lm120-277V AC dimmable (0-10V)
Diameter 39 in
LED 39,5W2700K Ra>90 4079lm120-277V AC dimmable (0-10V)
Ceiling/wall with 3000K light
Diameter 20 in
LED 20W3000K Ra>90 2039lm120-277V AC dimmable (0-10V)
Diameter 29 in
LED 29W3000K Ra>90 3059lm120-277V AC dimmable (0-10V)
Diameter 39 in
LED 39,5W3000K Ra>90 4079lm120-277V AC dimmable (0-10V)
Ceiling/wall with 3500K light
Diameter 20 in
LED 20W3500K Ra>90 2039lm120-277V AC dimmable (0-10V)
Diameter 29 in
LED 29W3500K Ra>90 3059lm120-277V AC dimmable (0-10V)
Diameter 39 in
LED 39,5W3500K Ra>90 4079lm120-277V AC dimmable (0-10V)
Wall
Light colour 3000 K
LED 11,5W3000K Ra>90 1000lm120V AC 120V ON-OFF
Light colour 2700 K
LED 11,5W2700K Ra>90 1000lm120V AC 120V ON-OFF
Light colour 3500 K
LED 11,5W3500K Ra>90 1000lm120V AC 120V ON-OFF
Canopies for single installation
Power supply
120-277V AC dimmable (0-10V)
Power supply and fixing
120-277V AC dimmable (0-10V)
Power supply
120-277V AC dimmable (0-10V)
Canopies for free compositions
2 elements
120-277V AC dimmable (0-10V)
3 elements
120-277V AC dimmable (0-10V)
4 elements
120-277V AC dimmable (0-10V)
