zero line
120-277V AC ON-OFFA036U22.100.0551
Finishes
Spec sheet
- Code A036U22.100.0551
- System power consumption 22,2W
- Efficacy 71.45lm/W
- Light source LED
- Colour temperature 2700K Ra>90
- Light distribution diffused
- Power supply 120-277V AC
- Frequency 60Hz
- Electrical configuration ON-OFF
- Driver integrated included
- Nominal luminous flux 2896lm
- Delivered lumen output 1572lm
- Efficiency 54.3%
- Weight 3,48 lbs
- Protection degree IP20
- Colour tollerances SDCM 3
- Packing dimensions 3,9 x 41,3 x 2,0 in

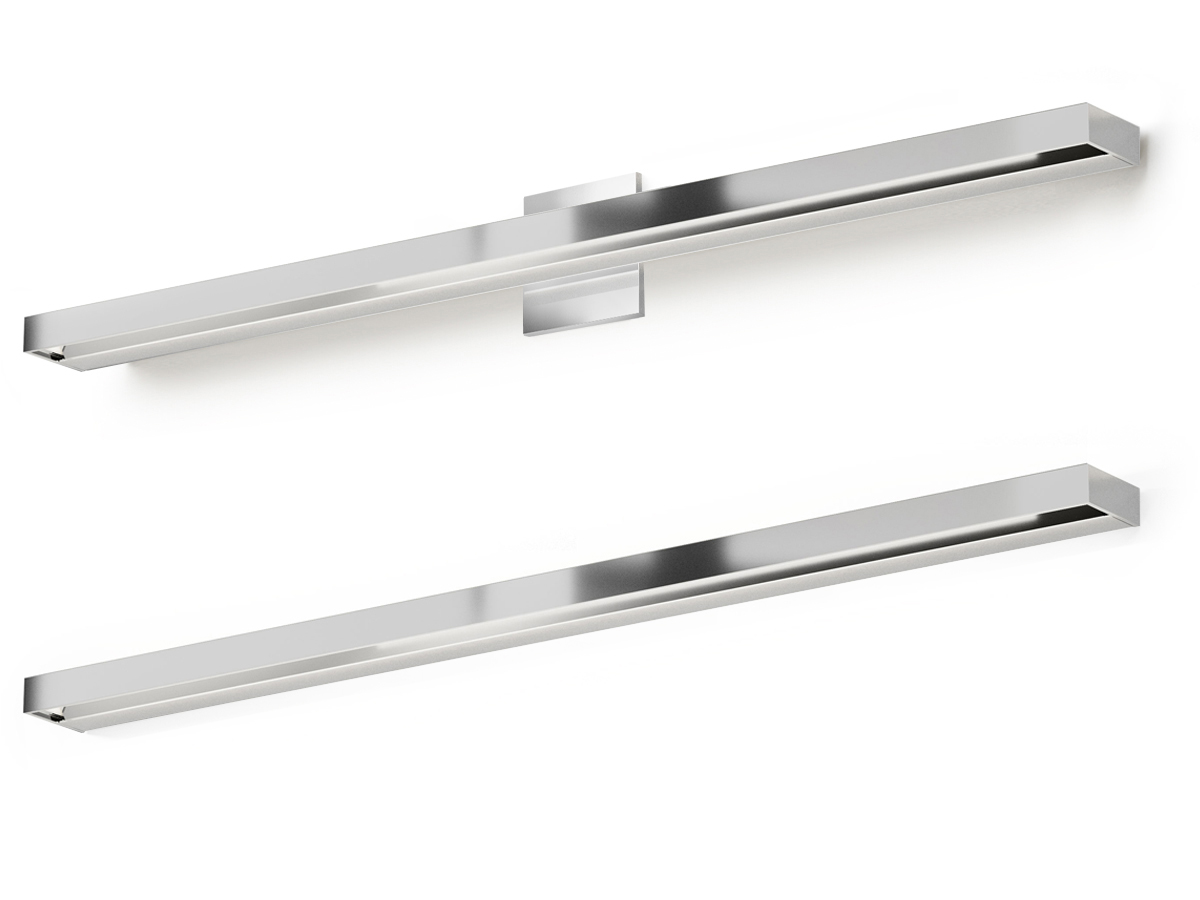

Ceiling or wall lighting fixture for interiors, with direct and indirect light emission.
Pickled sheet metal structure in white, bronze or mat brass polyacrylic paint, or with gold leaf coating, or in polished stainless steel.
Specular aluminium reflector.
Cover in brass with white, bronze or mat brass polyacrylic paint, or with gold leaf coating, or with galvanic chrome plating.
Extruded polycarbonate diffuser with opaline finish.
Application
Technical drawing
Polar diagram
