arena
120-277V AC dimmable (0-10V)L074U01.100.0553
Spec sheet
- Code L074U01.100.0553
- System power consumption 78W
- Efficacy 86.45lm/W
- Light source LED
- Light source lifetime L70 (B50) 60.000h
- Colour temperature 2700K Ra>90
- Light distribution diffused + adjustable
- Beam angle 30°
- Power supply 120-277V AC
- Frequency 60Hz
- Electrical configuration dimmable (0-10V)
- Driver integrated included
- Nominal luminous flux 8522lm
- Delivered lumen output 6743lm
- Efficiency 79.1%
- Weight 10,63 lbs
- Protection degree IP20
- Colour tollerances SDCM 3
- Packing dimensions 42,1 x 42,1 x 4,3 in
Suspension lighting fixture for interiors, with direct and indirect light emission and swivelling accent light.
Bended extruded aluminium structure in white, black, bronze, mat brass or titanium polyacrylic paint.
Extruded polycarbonate diffuser with opaline finish.
Die-cast aluminium joints in polyacrylic paint.
Die-cast aluminium projectors rotating on two axes in polyacrylic paint.
Reflectors in thermoplastic material with chrome plated finish.
Textured glass screens.
Anti-glare snoots in black thermoplastic material.
5m (196,9") long steel suspension cables.
5m (196,9") long power cable in transparent PVC.
Power canopy with pickled sheet metal ceiling bracket and covering in white, black, bronze, mat brass or titanium polyacrylic paint.
Technical drawing

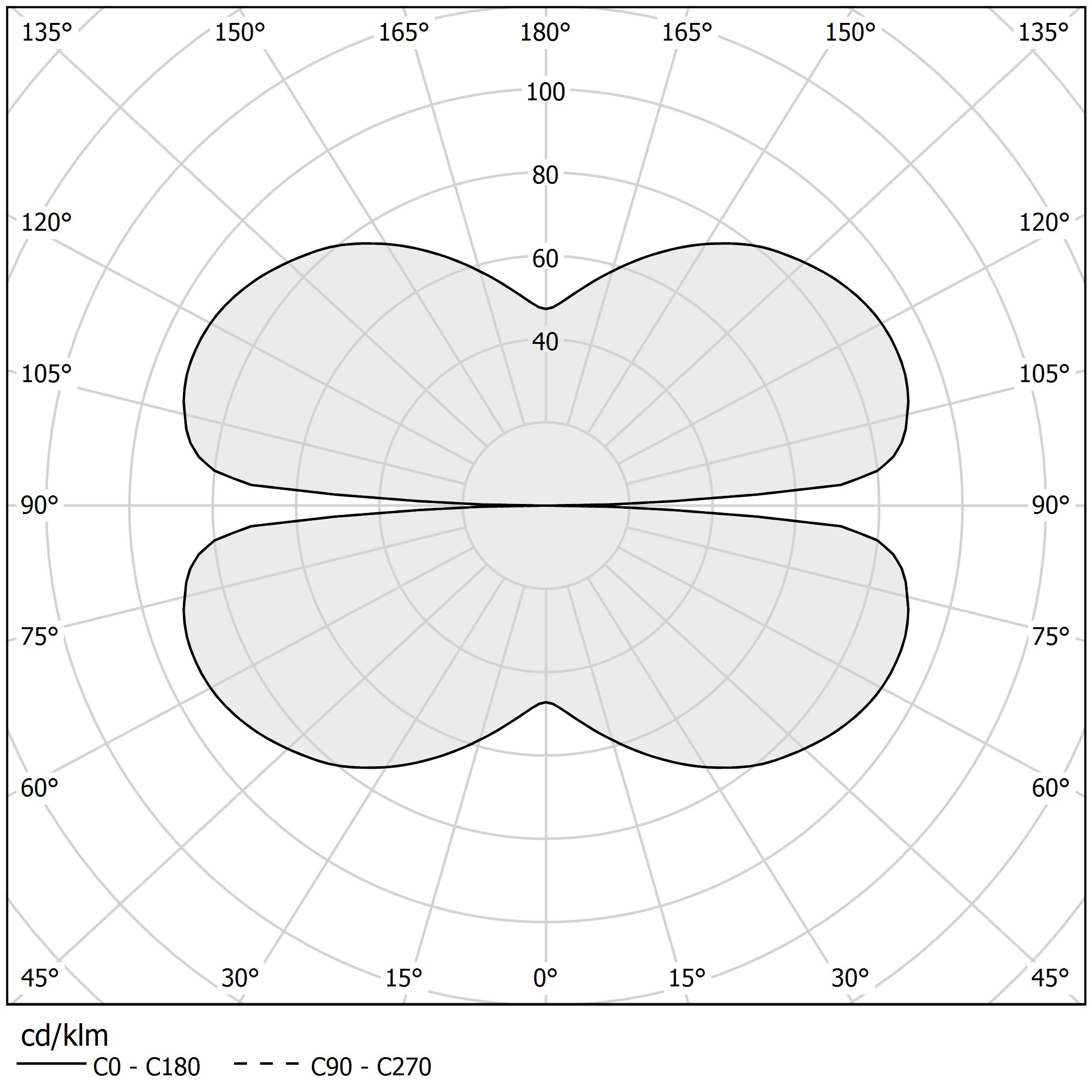

Polar diagram
