gong
120-277V AC dimmable (0-10V)L093U01.060.0453
Spec sheet
- Code L093U01.060.0453
- System power consumption 43W
- Efficacy 102.63lm/W
- Light source LED
- Light source lifetime L90 (B10) 50.000h
- Colour temperature 3000K Ra>90
- Light distribution diffused
- Power supply 120-277V AC
- Frequency 60Hz
- Electrical configuration dimmable (0-10V)
- Driver integrated included
- Nominal luminous flux 5564lm
- Delivered lumen output 4413lm
- Efficiency 79.3%
- Weight 7,63 lbs
- Protection degree IP20
- Colour tollerances SDCM 3
- Packing dimensions 6,7 x 27,2 x 27,2 in
Suspension lighting fixture for interiors, with indirect light emission.
Aluminium and pickled sheet metal structure in polyacrylic paint.
Turned aluminium reflector in white or black polyacrylic paint or with gold leaf coating.
Moulded acrylic diffuser with mat finish.
2m (78,7") long steel suspension cables.
2,2m (86,6") long power cable in transparent PVC.
Power canopy with pickled sheet metal case in white or black polyacrylic paint or with gold leaf coating.
Technical drawing

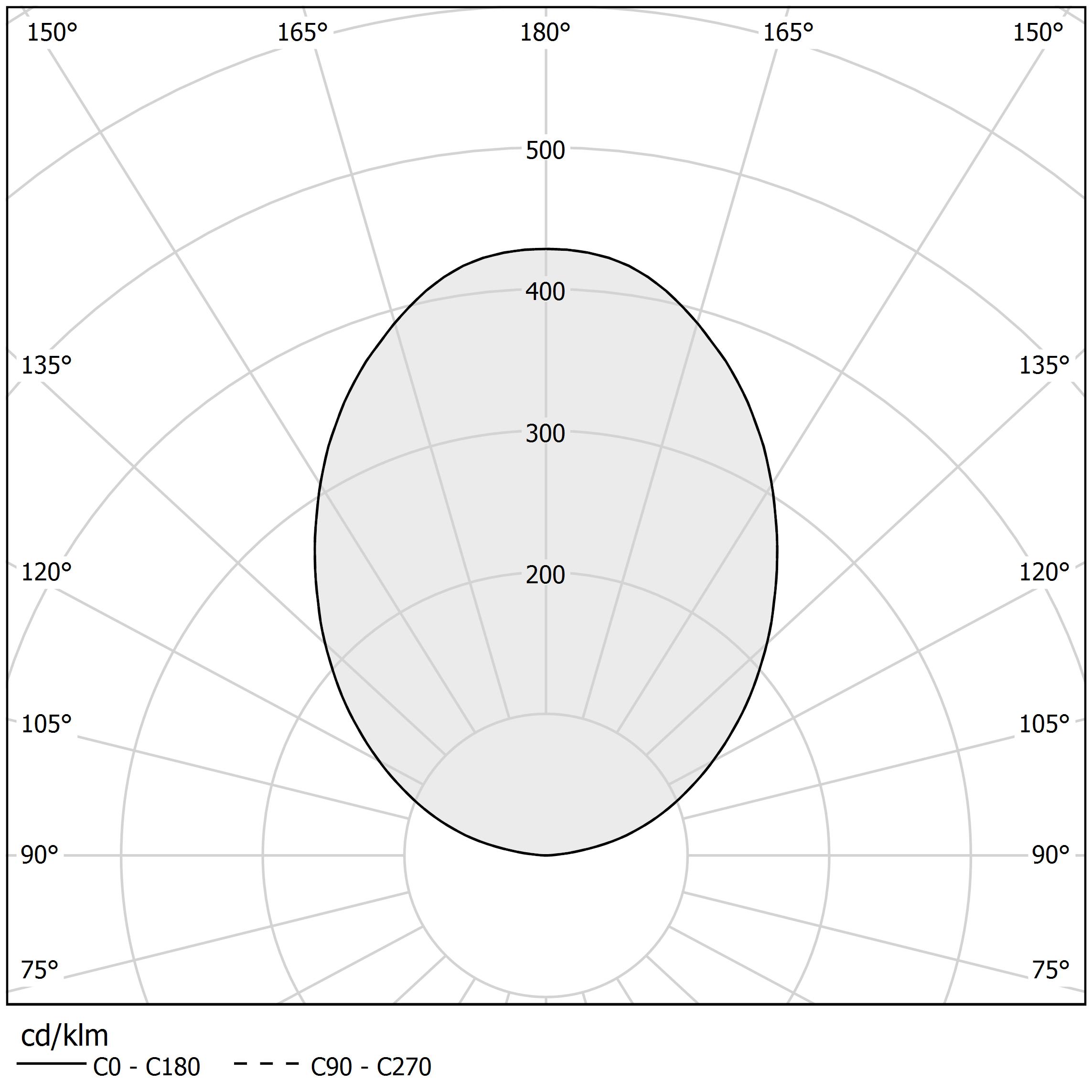

Polar diagram
