L015U40.050.0200

smoke

120-277V AC

L015U40.050.0200

Finishes

Structure:

Lampshade:

Spec sheet

  • Code L015U40.050.0200
  • System power consumption max 116W
  • Efficacy 11.47lm/W
  • Light source LED retrofit / halogen
  • Light source kit * included
  • Compatible sources LED retrofit bulb 21W E27 2700K Ra80 2500lm (dimmable)* / max 116W E27
  • Colour temperature 2700K Ra>80
  • Light distribution diffused
  • Power supply 120-277V AC
  • Frequency 60Hz
  • Nominal luminous flux 2500lm
  • Delivered lumen output 1330lm
  • Efficiency 53.2%
  • Weight 15,48 lbs
  • Protection degree IP20
  • Packing dimensions 0,0 x 0,0 x 0,0 in

Suspension lighting fixture for interiors, with direct and indirect light emission.
Pickled sheet metal structure in titanium polyacrylic paint.
Diffuser in hand-crafted blown glass with white or smoke-grey shaded effect.
2m (78,7") long steel suspension cable.
2m (78,7") long power cable in transparent PVC.
Power canopy with galvanized sheet metal ceiling bracket and pickled sheet metal covering in titanium polyacrylic paint.

Download

Technical drawing

Technical drawing - SMOKE - L015U40.050.0200

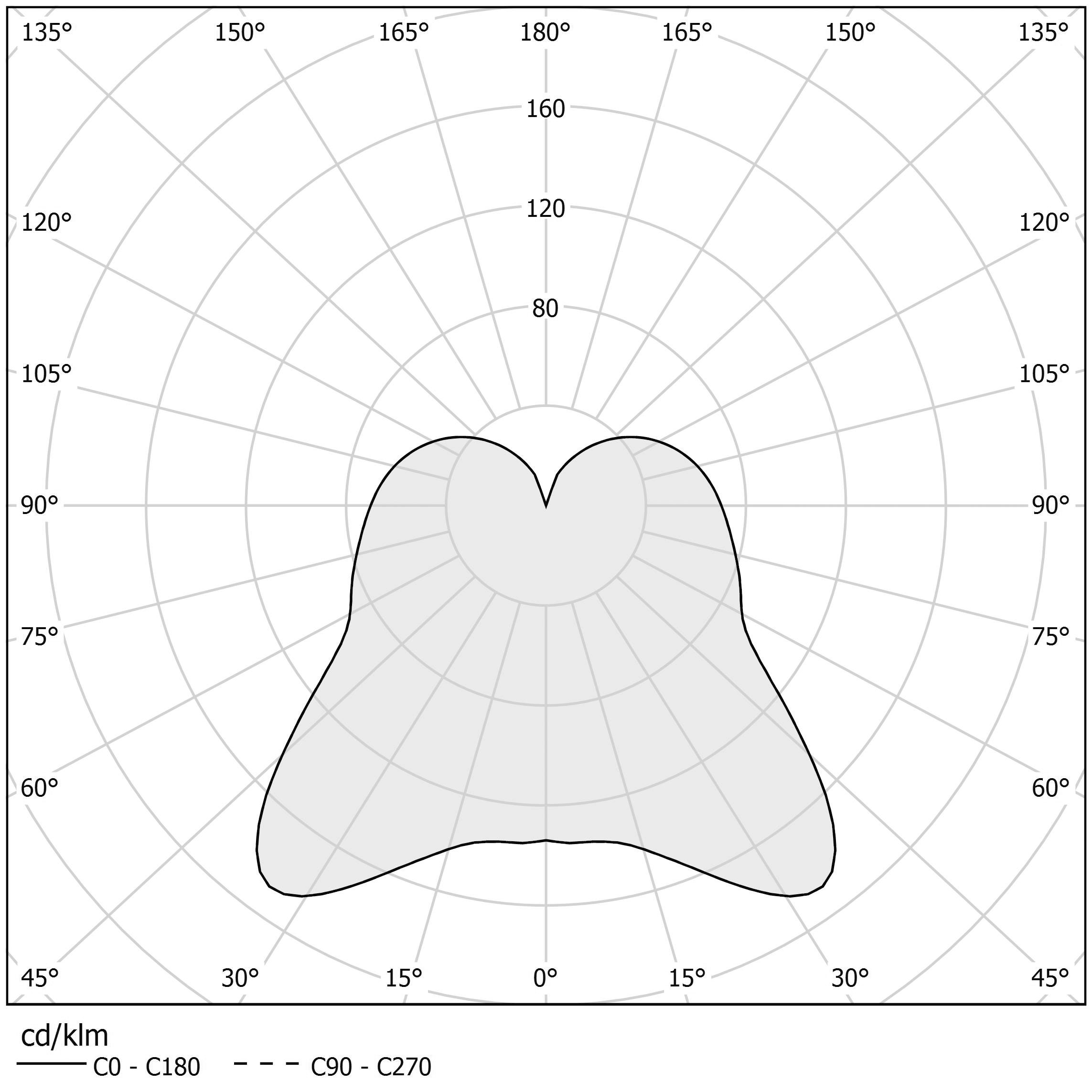

Polar diagram

Polar diagram - SMOKE - L015U40.050.0200
