to-be
24V DCM026U01.065.4610
Spec sheet
- Code M026U01.065.4610
- System power consumption 5,3W
- Efficacy 72.6lm/W
- Light source LED
- Light source lifetime L70 (B50) 60.000h
- Colour temperature 3500K Ra>90
- Light distribution diffused
- Power supply 24V DC
- Driver remote not included
- Nominal luminous flux 550lm
- Delivered lumen output 363lm
- Efficiency 66%
- Weight 0,99 lbs
- Protection degree IP40
- Colour tollerances SDCM 3
- Packing dimensions 2,0 x 41,3 x 3,9 in

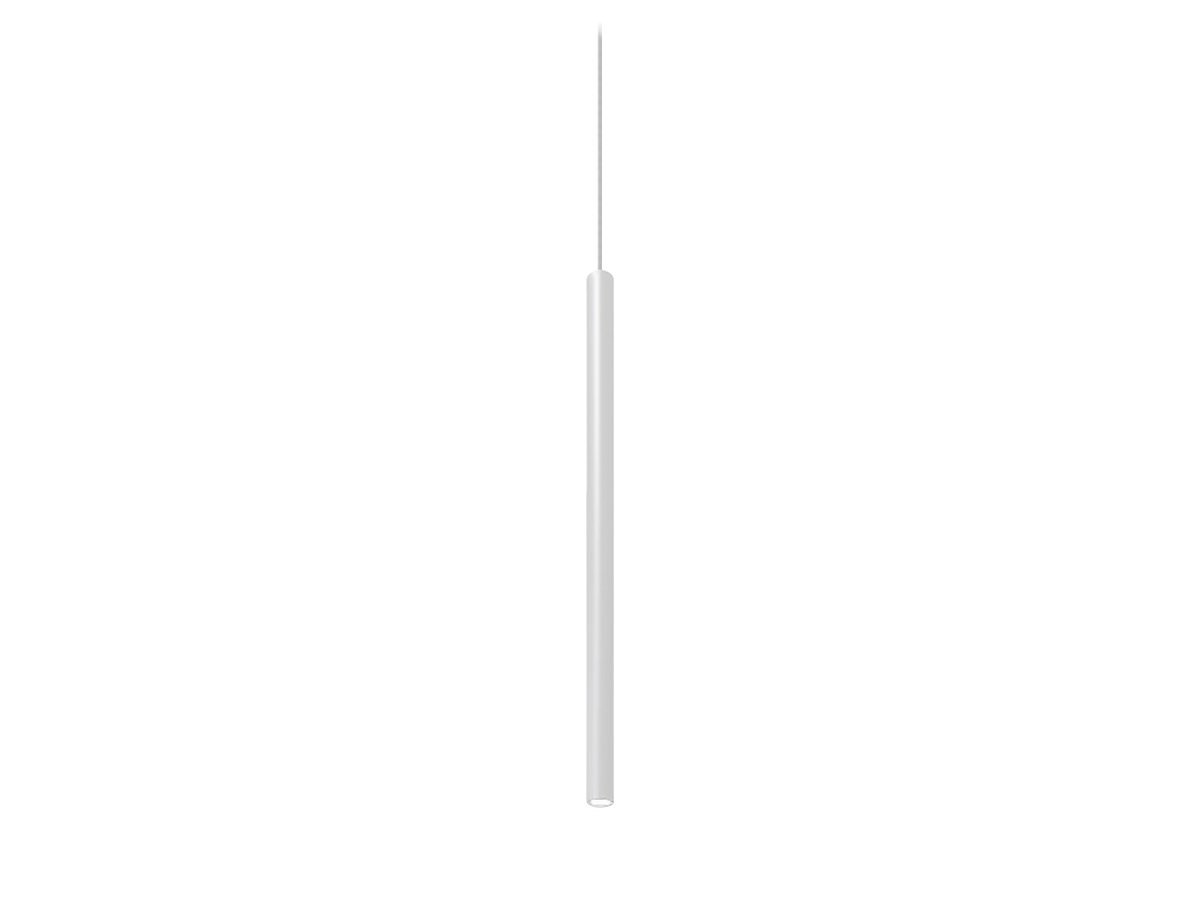

Multiple suspension lighting fixture for interiors, with direct light emission.
Extruded aluminium structure in white, mat black, bronze or mat brass polyacrylic paint or with gold leaf coating.
Extruded aluminium heat sink.
Modelled polycarbonate diffuser with opaline finish.
Turned brass end cap in polyacrylic paint.
2m (78,7") long suspension and power cable in transparent PVC.
Provided without power canopy, complete with cable clamp on the cable's free extremity.
Technical drawing
Polar diagram
