A036U01.100.0551

zero line

120-277V AC ON-OFF

A036U01.100.0551

Finishes

Spec sheet

  • Code A036U01.100.0551
  • System power consumption 22,2W
  • Efficacy 58.18lm/W
  • Light source LED
  • Colour temperature 2700K Ra>90

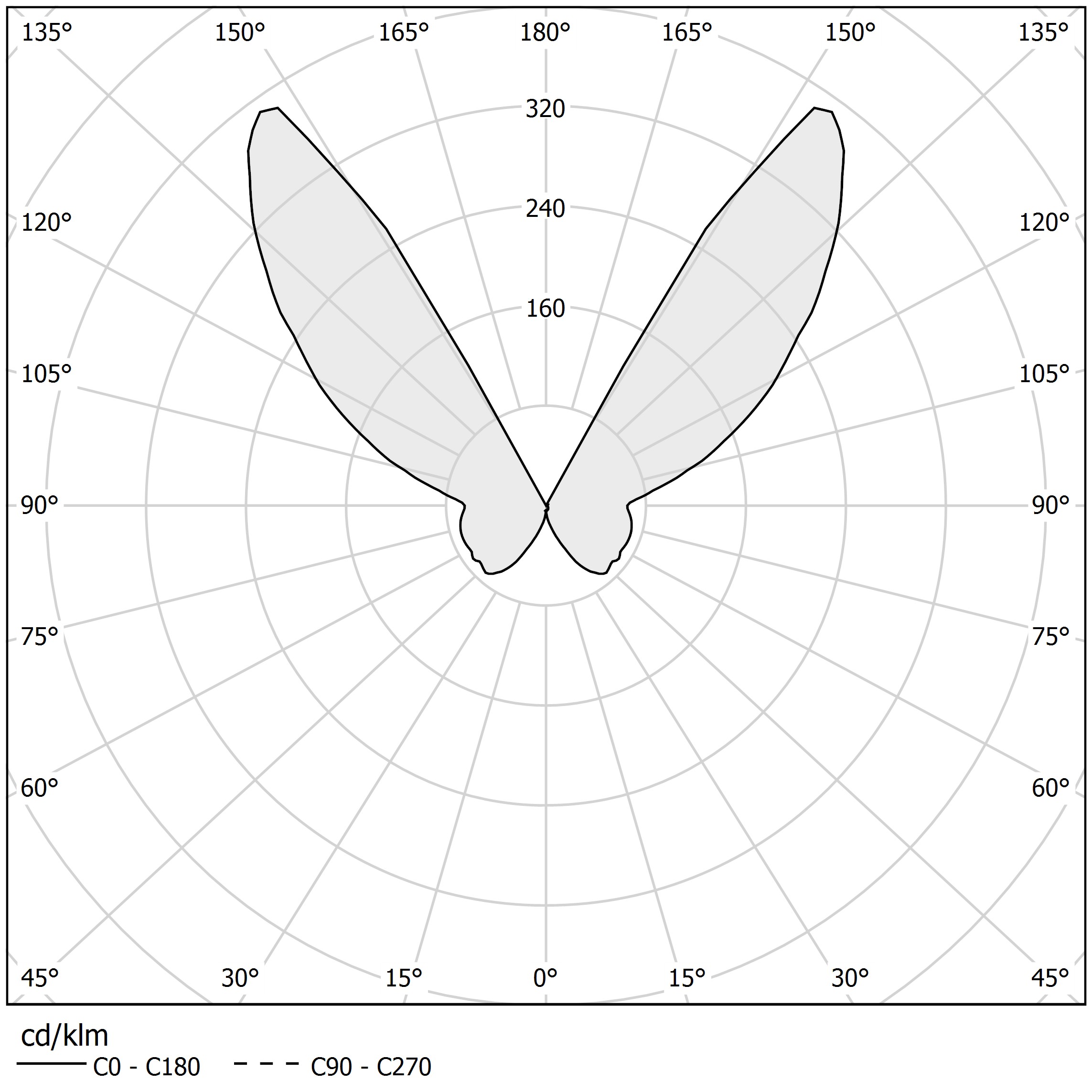

  • Light distribution diffused
  • Power supply 120-277V AC
  • Frequency 60Hz
  • Electrical configuration ON-OFF
  • Driver integrated included
  • Nominal luminous flux 2896lm
  • Delivered lumen output 1280lm
  • Efficiency 44.2%
  • Weight 3,48 lbs
  • Protection degree IP20
  • Colour tollerances SDCM 3
  • Packing dimensions 3,9 x 41,3 x 2,0 in
ZERO LINE - A036U01.100.0551

Ceiling or wall lighting fixture for interiors, with direct and indirect light emission.
Pickled sheet metal structure in white, bronze or mat brass polyacrylic paint, or with gold leaf coating, or in polished stainless steel.
Specular aluminium reflector.
Cover in brass with white, bronze or mat brass polyacrylic paint, or with gold leaf coating, or with galvanic chrome plating.
Extruded polycarbonate diffuser with opaline finish.

Application

Application - ZERO LINE - A036U01.100.0551

Technical drawing

Technical drawing - ZERO LINE - A036U01.100.0551
